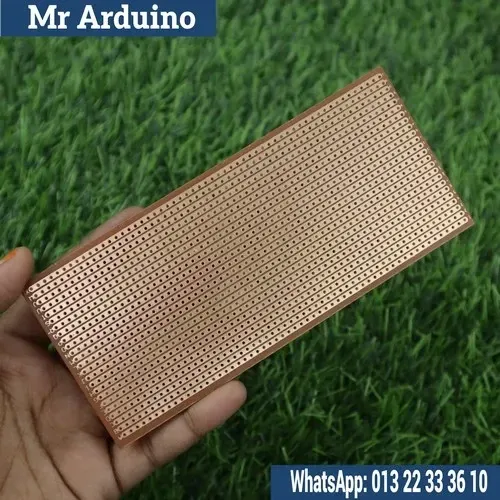

The Vero Board Line Type is an essential tool for prototyping and breadboarding your electronic circuits. This high-quality perforated PCB (Printed Circuit Board) is designed for quick and easy assembly of electronic components without the need for soldering complex custom PCBs. It features pre-drilled holes arranged in a line-type configuration, making it simple to insert and connect electronic components like resistors, capacitors, ICs, and transistors in a convenient, organized manner.

The Vero Board Line Type is ideal for hobbyists, engineers, and students who need a reliable and flexible platform for building prototypes or testing circuit designs. The board provides easy access to tracks and allows users to make shortcuts or jumpers for various circuit connections, significantly speeding up the development and testing process.

Key Features:

• Board Type: Vero (perforated) board with line-type layout

• Material: High-quality fiberglass for durability and heat resistance

• Hole Spacing: Standard 2.54mm spacing between holes for easy component placement

• Track Type: Continuous copper tracks running along the board to simplify connections

• Size: Typically available in 160mm x 100mm or customizable sizes (check individual listing)

• Easy to Use: Just insert your components and make connections using soldering or jumper wires

• Cost-Effective: Affordable and reusable, perfect for building quick prototypes or testing designs

• Versatile: Suitable for low-power circuits, simple DIY projects, and prototype testing

How It Works:

The Vero Board Line Type features copper tracks that run along the length of the board, allowing you to connect components through the perforated holes. Each hole connects to copper strips on the board, which can be used to connect various components. You can cut or modify these copper tracks to create custom circuit paths. For more advanced setups, additional connections and bridges can be made using jumper wires or by soldering.

When using a Vero Board, you can follow the pre-existing track lines or cut through them to create custom circuit designs. For more complex projects, additional soldering pads can be added for components such as ICs, diodes, and transistors.

Typical Use Cases:

• Prototyping Circuits: Quickly test circuit designs without the need for custom PCB fabrication

• Educational Projects: Ideal for students and hobbyists learning about electronics and circuit design

• DIY Electronics: Build custom circuits for robots, sensors, audio systems, and more

• Repairs and Modifications: Fix or modify existing circuits by adding new components and connections

• Electronics Development: A versatile platform for testing designs before transferring to a custom PCB

Limitations:

• Not Ideal for Complex Designs: Vero boards are great for simple and medium complexity circuits, but not suited for highly complex or multi-layer PCBs

• Limited for High-Current Circuits: Generally designed for low-power applications; may not handle high-current circuits effectively

• Manual Modification Required: Tracks may need to be manually cut or modified for more complex designs

• Size Limitation: May not provide enough space for large or densely-packed circuit designs
