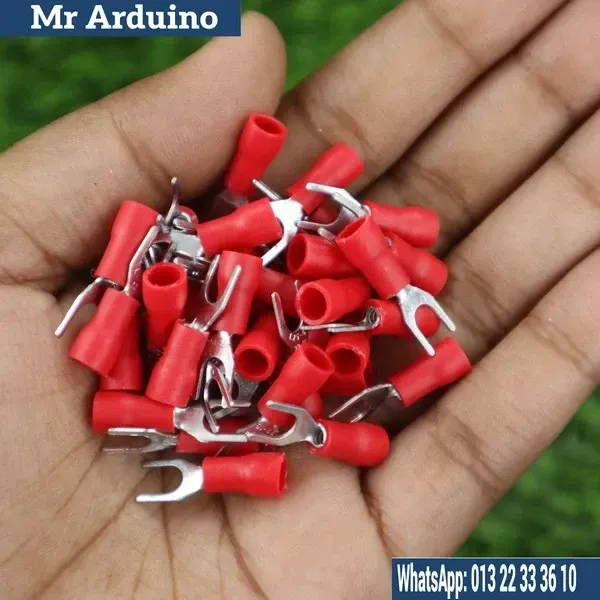

The U and V Tip 1.25-4 Insulator Terminal Connector Red is a high-quality electrical connector designed for safe, secure, and insulated wiring connections. Featuring U and V tip designs, this connector provides a versatile and easy way to connect to male spade or tab terminals. The 1.25-4 designation indicates that this connector is compatible with 1.25mm male terminals, and it features a 4mm insulation grip, making it suitable for various medium-duty electrical applications.

The red insulation is typically used for connecting 22-18 AWG wire sizes, making it ideal for automotive, household, and industrial wiring systems. The insulated casing provides protection against accidental shorts, moisture, dirt, and other environmental factors, ensuring a long-lasting and safe electrical connection.

How It Works:

The U and V Tip 1.25-4 Insulator Terminal Connector Red is used to create secure, insulated connections between wires and male spade or tab terminals. Here’s the typical process for using it:

1. Step 1: Begin by stripping the insulation from the wire to expose the copper conductor.

2. Step 2: Insert the exposed wire into the open end of the terminal connector.

3. Step 3: Use a crimping tool to securely crimp the wire inside the connector, ensuring a strong mechanical bond between the wire and terminal.

4. Step 4: The U and V tips allow for easy attachment to male spade or tab terminals. Simply slide the terminal connector onto the male terminal and ensure that it fits snugly for a reliable connection.

5. Step 5: The red insulation around the connector provides electrical insulation and helps prevent accidental shorts, ensuring a safe and secure electrical connection.

Product Limitations:

• Size Compatibility: The 1.25-4 connector is designed for 1.25mm male terminals. It may not be compatible with terminals that are too large or small. Always ensure that the connector is compatible with your terminal size.

• Current Rating: The red connector is typically used for 22-18 AWG wire and is suitable for medium-duty electrical applications. If your circuit requires handling higher current, consider using a terminal connector designed for larger wire gauges or higher power ratings.

• Environmental Resistance: While the insulation protects against most environmental factors, it may not be suitable for extreme temperatures or harsh chemicals. For high-temperature or industrial applications, consider using terminals with higher-rated insulation.

• Crimping Quality: To ensure the best connection, it’s essential to use an appropriate crimping tool. A poor crimp can lead to weak or unreliable connections, causing potential circuit failures.

The U and V Tip 1.25-4 Insulator Terminal Connector Red offers a practical, reliable, and safe solution for creating insulated electrical connections. Perfect for automotive, industrial, and general wiring needs, it combines versatility, safety, and durability in one easy-to-use connector.
