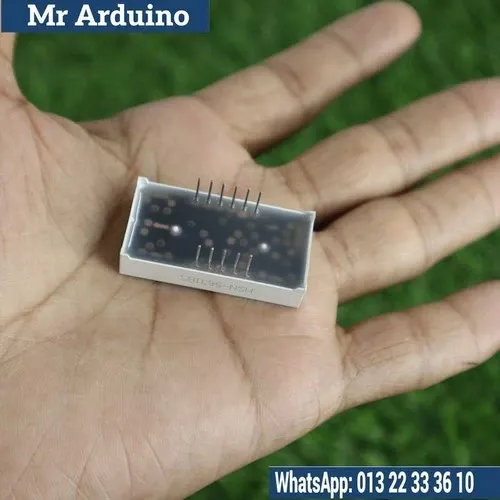

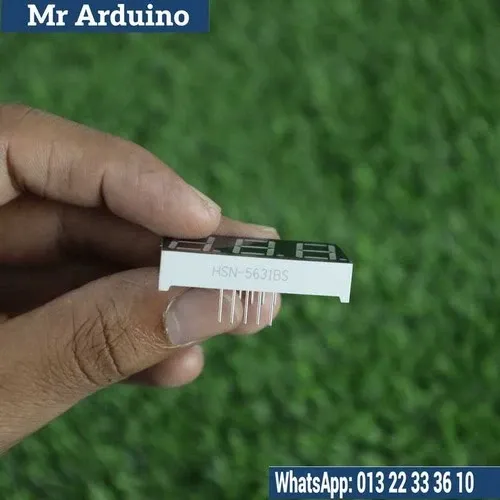

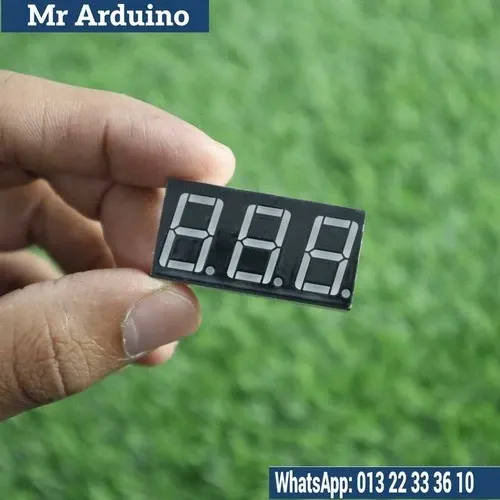

The 7 Segment 3 Digit 5631BS CA is a compact and versatile 3-digit 7-segment display designed to show numerical values from 000 to 999 using three individual digits. This display module is particularly useful for applications such as digital clocks, counters, temperature or voltage meters, and measuring devices that require clear and reliable numeric output. Each digit consists of 7 segments arranged in the classic figure-eight pattern, which can be selectively lit to form any number from 0 to 9.

This particular model comes in a common cathode configuration, where the cathode pin is shared by all the segments. The individual anode pins for each segment allow precise control over which parts of the display are lit. This makes it easy to interface with microcontrollers such as Arduino or Raspberry Pi for use in both DIY electronics projects and industrial applications.

How It Works: The 7 Segment 3 Digit 5631BS CA works by lighting specific segments to form different digits. Here's how it operates:

1. Common Cathode Configuration: The common cathode pin is shared by all segments of all three digits. Each segment (a, b, c, d, e, f, g) has an individual pin.
2. Digit Control: Each of the three digits is controlled through its own digit control pins, which allow you to light up individual digits. Each segment of the digit is controlled by applying a voltage to its respective pin.
3. Multiplexing: To display all three digits, you typically use a technique called multiplexing. This involves switching between digits rapidly. The microcontroller lights up one digit at a time while cycling through all three digits so quickly that the human eye perceives them as all being lit at once.
4. Displaying Numbers: To display a number, the relevant segments are lit for each digit. For example, to display '1', you turn on segments b and c while leaving the rest off.

Key Features:

• 3 Digit Display: Displays three digits (0-9) in a compact form, making it suitable for applications where three-digit values are needed.
• 7 Segment Design: The display has 7 segments per digit, allowing it to show all digits from 0 to 9.
• Common Cathode Configuration: In this configuration, all the cathodes are shared across the segments, allowing easy control of individual segments by applying positive voltage to the corresponding segment pins.
• Multiplexing Capable: The display uses multiplexing to control multiple digits using fewer control lines, making it more efficient for microcontroller-based projects.
• Compact Size: The module is small enough to be used in projects where space is limited but a 3-digit numeric display is required.
• High Visibility: The segments are designed to offer high brightness, making them suitable for use in both low-light and bright environments.
• Durable Construction: Made from high-quality materials, this display is built to last and perform reliably for extended periods.

Specifications:

• Digit Type: 3-Digit 7 Segment Display
• Display Type: Common Cathode (shared cathode pin for all segments)
• LED Color: Typically Red, but other colors may be available such as green, blue, or yellow.
• Segment Count: 7 segments per digit, labeled a, b, c, d, e, f, g.
• Operating Voltage: Typically 5V, making it compatible with most 5V microcontrollers like Arduino.
• Current Rating: Each segment typically draws 20mA of current when lit, and the total current draw will depend on how many segments are on at once.
• Pin Configuration:
  • 3 Digit Control Pins (for multiplexing and selecting which digit to display).
  • 7 Segment Pins for each of the segments of each digit (a, b, c, d, e, f, g).
  • Common Cathode Pin shared by all segments of all digits.
• Dimensions: Approximately 40mm x 20mm x 10mm for a 3-digit module.
• Viewing Angle: Typically around 45° to 60°, providing good visibility at most angles.
• Operating Temperature: Typically -20°C to 85°C, making it suitable for use in a variety of environments.
• Color Options: Usually comes in Red, but other colors like Green, Yellow, or Blue may be available depending on the version.

Applications:

• Clocks and Timers: Used in digital clocks and countdown timers to display the time or elapsed time with clear readability.
• Counters: Perfect for counter applications, such as event counters, production counters, or scoreboards.
• Measuring Instruments: Ideal for displaying numeric values in devices like voltage meters, current meters, temperature sensors, and hygrometers.
• Digital Meters: Commonly used in digital voltmeters, ammeters, frequency meters, and multimeters to show measurement data.
• DIY Electronics Projects: Frequently used in Arduino-based projects, Raspberry Pi applications, and other electronics projects that require a 3-digit numeric display.
• Industrial Applications: Suitable for industrial machines or control panels where clear, numerical output is required for readings or settings.
• Battery Level Indicators: Can be used in battery monitoring systems to display battery charge levels in 3-digit format.
• Home Appliances: Can be integrated into home appliance displays, such as microwaves, ovens, or home automation systems to show operational parameters.

Limitations:

• Limited to Digits 0-9: The display is primarily designed for numeric output. Although it can represent some alphanumeric characters (e.g., A, E, b, etc.), it cannot display a full range of alphabetical letters.
• Requires Multiplexing or Driver IC: For proper operation, you will need a multiplexing technique or a driver IC to manage the 3 digits and control the segments, particularly for larger projects.
• Power Consumption: The total power consumption can increase if many segments are on at once, especially when displaying multiple digits with many segments lit.
• Size Limitation: The 3-digit display is suitable for applications where only a three-digit output is required. For more complex displays, you may need a larger display or additional modules.

Conclusion: The 7 Segment 3 Digit 5631BS CA is an excellent choice for any project that requires a compact yet efficient way to display three-digit numbers. Whether you're building a digital clock, counter, sensor-based display, or a measurement tool, this display module offers high visibility and ease of use. The common cathode design and 7-segment structure allow for straightforward control via microcontrollers such as Arduino or Raspberry Pi. The multiplexing capability makes it an ideal solution for low pin-count systems, and its durable and reliable design ensures it will perform well in both DIY and industrial applications.
