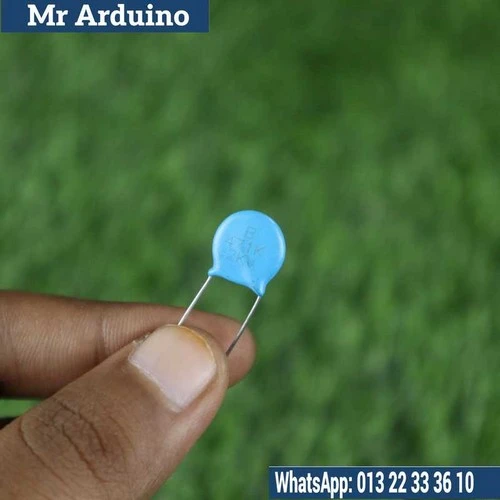

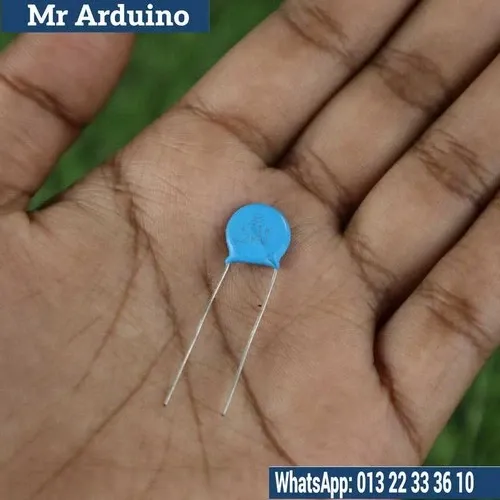

The 471K 2KV MOV (Metal Oxide Varistor) is a surge protection component used to protect electronic circuits and devices from voltage spikes or transient surges caused by electrical disturbances, such as lightning strikes, power line crosses, or switching noise. The 471K part number refers to its voltage rating, and the 2KV indicates that the device is capable of withstanding up to 2,000V transient spikes. The "K" denotes the tolerance rating, indicating a variation of ±10%.

The MOV uses a metal oxide material to regulate and absorb excess voltage. It is widely used in consumer electronics, industrial equipment, power supplies, AC lines, and communication systems to ensure protection from high-voltage events that could otherwise cause significant damage to sensitive components.

Key Features:

• Voltage Rating: 2KV, capable of handling transient voltage spikes up to 2,000V.

• Capacitance Value: 47nF (47000 pF) capacitance, providing the necessary energy absorption for effective transient protection.

• Tolerance: ±10% tolerance (denoted by "K"), indicating slight variation from the nominal value in terms of voltage absorption characteristics.

• Material: Made with metal oxide material, which has excellent voltage clamping and energy dissipation properties, making it highly effective for surge protection.

• Response Time: Fast response time to sudden voltage changes, quickly clamping high-voltage transients to safe levels.

• High Energy Absorption: Designed to absorb and dissipate large amounts of energy, ensuring the protected circuit remains unaffected during transient events.

• Compact Size: Standard package size for easy integration into PCBs and other electronic systems.

• Durability: Long-lasting protection with reliable performance in most conditions where high voltage surges are expected.

Applications:

• Power Supply Protection: The 471K 2KV MOV is often used in AC and DC power supplies to protect against voltage surges that could damage sensitive components like rectifiers, capacitors, and voltage regulators.

• Home Appliances: MOVs are commonly used in consumer electronics such as televisions, microwaves, refrigerators, and air conditioners to protect the internal circuits from power surges.

• Communication Systems: MOVs are used in telecommunications and data transmission equipment to shield against voltage spikes that may occur due to lightning strikes or electrical faults.

• Industrial Equipment: Protects sensitive industrial machinery and control systems in environments where power surges may occur.

• Lighting Systems: Used in lighting circuits, such as LED drivers or fluorescent lighting, to absorb sudden voltage spikes and ensure longevity and protection of the equipment.

• Automotive Applications: Used to protect automotive electronics from voltage surges generated during ignition or alternator fluctuations.

• Surge Protection Devices (SPDs): Commonly used in surge protectors, providing protection for home electronics, office equipment, and network systems.

• Battery-Powered Systems: MOVs can be used in battery-powered devices to ensure they are protected from voltage surges when recharging or during system power-up.

How It Works: An MOV (Metal Oxide Varistor) is a voltage-dependent resistor that exhibits a nonlinear change in resistance as the voltage across it increases. The basic operation of the 471K 2KV MOV involves the following:

1. Normal Operation (Low Voltage): Under normal conditions (when the voltage is below the clamping threshold), the MOV behaves as a high-resistance component and does not conduct current, leaving the protected circuit unaffected.

2. Voltage Surge: When a transient voltage spike or surge occurs (such as from lightning or power line switching), the voltage across the MOV increases. As the voltage exceeds the threshold, the MOV rapidly decreases its resistance, clamping the excess voltage and diverting the surge current away from the sensitive components in the circuit.

3. Energy Dissipation: The MOV absorbs the surge energy and dissipates it as heat. Once the surge passes, the MOV returns to its high-resistance state, ready to protect against the next surge.

4. Clamping Voltage: The 2KV rating indicates that the MOV is designed to start clamping voltages above 2,000V, protecting sensitive components from high-voltage spikes that could otherwise cause permanent damage.

5. Capacitance Role: The 47nF capacitance helps the MOV to smooth out and absorb high-frequency noise in addition to protecting against transient spikes, especially in AC circuits.

Product Limitations:

• Single-use Protection: While MOVs are effective in clamping voltage surges, their ability to protect is finite. After absorbing a significant number of surges or one very large surge, the MOV can deteriorate and may fail to provide protection in subsequent events. This is why MOVs should be inspected or replaced periodically if used in high-risk surge environments.

• Power Dissipation: MOVs absorb energy by converting it into heat. If the device is exposed to repeated or continuous surges, it may overheat and fail. Therefore, proper thermal management is important in high-traffic surge areas.

• Tolerances: The ±10% tolerance may limit precision in applications where more accurate voltage clamping is required.

• Capacitance Impact on Circuit Performance: The capacitance of 47nF may not be suitable for circuits that cannot tolerate the added capacitance. For high-frequency circuits, this could impact the signal integrity or performance.

Conclusion: The 471K 2KV MOV (Metal Oxide Varistor) is an effective and reliable surge protection component used to safeguard electronic devices and circuits from high-voltage transients. With a 2KV clamping voltage and 47nF capacitance, it is ideal for protecting power supplies, consumer electronics, industrial equipment, and communication systems from potentially damaging surges and voltage spikes.

This MOV offers essential protection for circuits that may be exposed to lightning strikes, power line disturbances, or switching transients. However, users should be aware that MOVs have a limited lifespan and may need replacement after repeated surges.
