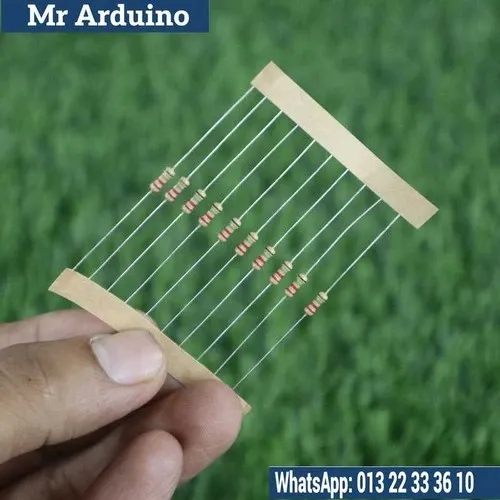

The 2.2M Ohm Resistor Quarter Watt 0.25W is a high resistance resistor with a value of 2.2 megaohms (MΩ) and a power rating of 0.25 watts (quarter-watt). This resistor is typically used in high-impedance circuits, signal conditioning, and voltage dividers where higher resistance is needed to control current flow and regulate voltage without excessive power dissipation. The 0.25W power rating ensures it can safely handle low-to-moderate power applications, making it suitable for circuits where minimal current is required.

This resistor is commonly used in sensitive electronic devices, sensor applications, and high-frequency signal processing circuits, where controlling high resistance without excessive heat generation is crucial.

Key Features:

• Resistance Value: 2.2M ohms (2,200,000 ohms), ideal for applications requiring high resistance to control or limit current flow in circuits with low current requirements.
• Power Rating: 0.25W (quarter-watt), suitable for low-power circuits, ensuring no overheating or failure under typical conditions.
• Tolerance: Available in ±5% tolerance (standard), or ±1% tolerance for more precise applications.
• Compact Size: The quarter-watt size is small and easily integrates into compact circuit designs.
• Material: Made from carbon film or metal oxide, providing stable resistance and long-term reliability.

How It Works: The 2.2M Ohm Resistor Quarter Watt 0.25W limits the flow of current in a circuit by following Ohm’s Law (V = IR), where V is the voltage across the resistor, I is the current through it, and R is the resistance. A high resistance value such as 2.2M ohms results in a very small current for a given voltage, making it perfect for high-impedance applications.

For example, if you apply a 5V supply across the 2.2M ohm resistor, the current flowing through the resistor can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{2.2MΩ} = 2.27 \, \mu A$$

This means that with a 5V supply, only 2.27 microamperes (µA) will flow through the resistor, making it suitable for applications where very low current is needed.

The 0.25W power rating ensures that the resistor will dissipate no more than 0.25 watts of power. In practice, this resistor will not typically exceed its power rating unless it is used in circuits that involve higher voltages or current than intended. Overloading the resistor can cause overheating and potential failure.

Applications:

• Voltage Dividers: The 2.2M ohm resistor is frequently used in voltage divider circuits to produce specific voltage levels needed for sensors, microcontrollers, or analog-to-digital conversion (ADC) circuits.
• Signal Conditioning: In signal conditioning applications, this resistor can help attenuate, filter, or regulate voltage levels for delicate electronic components such as sensors and op-amps.
• Current Limiting: Used in current-limiting circuits where very low current needs to be allowed to flow through a circuit, protecting sensitive components like LEDs or transistors.
• High Impedance Circuits: Perfect for circuits with high impedance where low current needs to be regulated, such as voltage sensing circuits or signal detection in high-frequency applications.
• Biasing Circuits: In transistor biasing and op-amp circuits, the resistor helps set appropriate voltage levels for stable operation of active components.
• High-Resistance Sensing: Ideal for high-resistance sensing applications, such as electrochemical sensors or humidity sensors, where a high resistance value is required for proper signal interpretation.
• Leakage Current Limiting: Used in circuits involving capacitors or other components where leakage current needs to be minimized for proper functioning.

Limitations:

• Low Power Rating: The 0.25W power rating limits this resistor to low-power circuits. It is not suitable for high-power applications where significant current or voltage fluctuations occur. For higher power circuits, resistors with higher power ratings (e.g., 0.5W, 1W, etc.) should be used.
• Current Handling: Since the 2.2M ohm resistance value is high, it is ideal for circuits where very low current is required. It may not be suitable for circuits that demand higher currents, as it would reduce the current flow too much.
• Tolerance Variability: With a typical ±5% tolerance, the actual resistance may slightly vary, which could affect precision in high-accuracy circuits. For more precise applications, consider using resistors with tighter tolerance (±1%).

The 2.2M Ohm Resistor Quarter Watt 0.25W is a versatile and reliable component for high-impedance, low-current circuits. It ensures accurate voltage regulation and current control in applications such as sensor circuits, signal processing, and voltage dividers, while maintaining low power dissipation for sensitive electronic designs.
