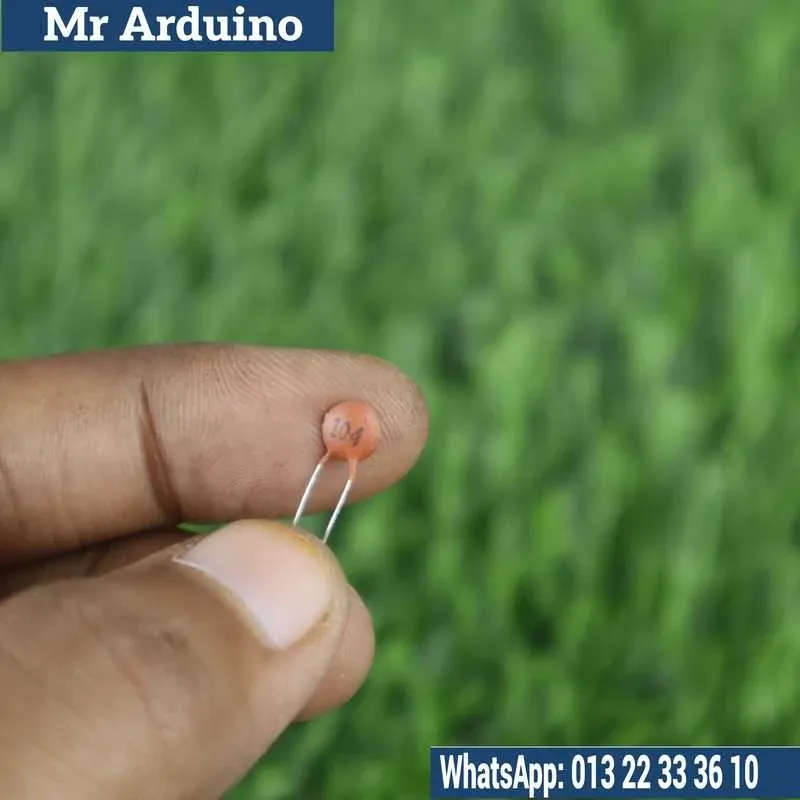

The 104 pF 50V Ceramic Disc Capacitor is a high-quality capacitor designed for various electronic applications, offering stability and reliability in circuits. The "104" refers to its capacitance value of 100,000 pF (100 nF), with a tolerance value typically ranging from ±10% to ±20%. With a voltage rating of 50V, this capacitor is perfect for use in low-voltage circuits and is commonly used in filtering, decoupling, and signal coupling applications.

The ceramic disc construction ensures that the capacitor is durable and provides excellent electrical properties with minimal heat generation. The compact and robust design makes it suitable for both through-hole and surface-mount soldering applications.

Key Features:

• Capacitance: 104 pF (100 nF)

• Voltage Rating: 50V

• Material: Ceramic

• Tolerance: Typically ±10% to ±20%

• Temperature Range: Suitable for most general electronic environments

• Compact and robust design for easy integration into various circuit types

• High insulation resistance, ensuring effective filtering and decoupling

Applications:

• Filtering and decoupling in power supply circuits

• Signal coupling in analog and digital circuits

• Timing circuits and RF applications

• Low-voltage electronic projects

How It Works: The Ceramic Disc Capacitor functions by storing and releasing electrical energy in a circuit. It allows AC signals to pass through while blocking DC signals, making it ideal for smoothing out voltage fluctuations in power supplies. When used in timing circuits, it helps control the charging and discharging rate, influencing frequency generation. Additionally, the capacitor acts as a filter to eliminate unwanted noise in both analog and digital systems, improving overall circuit performance.

Product Limitations:

• Voltage Rating: It should not be subjected to voltages exceeding the 50V rating, as this may lead to dielectric breakdown.

• Temperature Sensitivity: Ceramic capacitors can have a slight variation in capacitance due to temperature changes, so they may not be ideal for precision circuits requiring highly stable capacitance.

• Tolerance Range: The capacitance tolerance is typically between ±10% to ±20%, which may cause minor variations in the performance of sensitive circuits.
