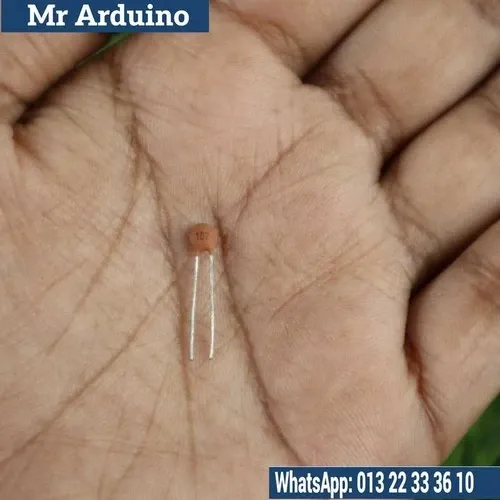

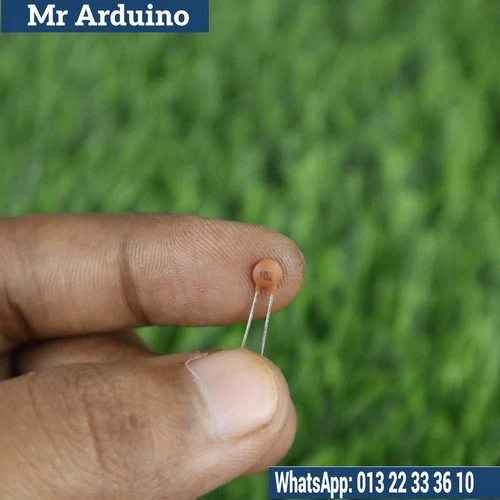

The 102 pF 50V Ceramic Disc Capacitor is a versatile and reliable capacitor designed for use in a wide range of electronic applications. The "102" marking indicates a capacitance value of 1000 pF (1 nF), and it is rated for a maximum voltage of 50V. This ceramic disc capacitor is widely used for applications requiring high stability, durability, and effective filtering, decoupling, and signal coupling within electronic circuits.

The capacitor is made from high-quality ceramic material, ensuring long-lasting performance even under varied environmental conditions. Its disc shape and compact design make it easy to integrate into various circuit layouts, providing excellent electrical performance for both through-hole and surface-mount installations.

Key Features:

• Capacitance: 102 pF (1000 pF or 1 nF)

• Voltage Rating: 50V

• Material: Ceramic

• Tolerance: Typically ±10% to ±20%

• Temperature Range: Suitable for most general electronic environments

• Small form factor and robust construction

• High insulation resistance for effective filtering and decoupling

Applications:

• Signal filtering and decoupling in power and communication circuits

• High-frequency signal coupling in RF circuits

• Smoothing and noise suppression in analog and digital circuits

• General-purpose use in low-voltage applications

How It Works: The 102 pF 50V Ceramic Disc Capacitor stores and releases electrical energy within a circuit. It blocks DC signals while allowing AC signals to pass, making it an essential component in signal coupling and filtering. In power supply systems, it smooths voltage fluctuations, ensuring a stable output. When used in timing circuits, it helps set charging and discharging rates, influencing the overall timing and frequency of the circuit. Its small size and efficient design make it particularly useful in high-frequency applications like RF circuits, where precision is important.

Product Limitations:

• Voltage Rating: Should not exceed the 50V rating to avoid damage to the dielectric material and potential breakdown.

• Capacitance Tolerance: The capacitor has a tolerance range of ±10% to ±20%, so it may not be suitable for applications requiring highly precise capacitance values.

• Temperature Sensitivity: Ceramic capacitors, especially those with certain dielectric materials, can experience some capacitance variation with changes in temperature, so they may not be ideal for highly temperature-sensitive applications.
