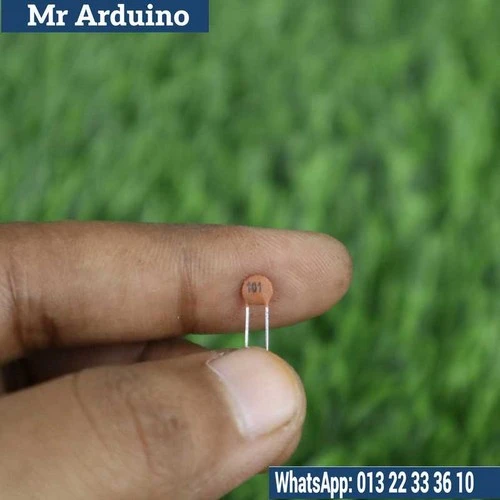

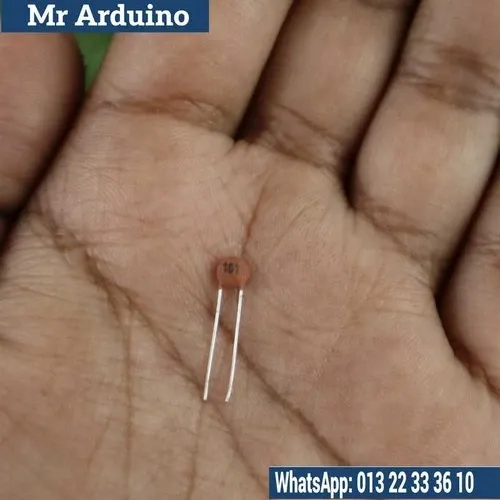

The 101 pF 50V Ceramic Disc Capacitor is a compact and reliable electronic component designed to offer stable and efficient performance in a variety of circuits. The "101" designation indicates a capacitance value of 100 pF (picofarads), and the capacitor is rated for a maximum voltage of 50V. This capacitor is typically used for signal coupling, decoupling, filtering, and timing applications, particularly in low-voltage circuits.

Built with high-quality ceramic material, the 101 pF Ceramic Disc Capacitor provides excellent electrical characteristics, minimal heat generation, and long-term durability. Its compact disc shape makes it easy to mount on circuit boards, and it is ideal for both through-hole and surface-mount soldering applications.

Key Features:

• Capacitance: 101 pF (100 pF)

• Voltage Rating: 50V

• Material: Ceramic

• Tolerance: Typically ±10% to ±20%

• Temperature Range: Suitable for most general-purpose electronics

• Compact disc design ensures easy integration into various circuits

• High insulation resistance for effective signal filtering and decoupling

Applications:

• Signal filtering in audio, RF, and other communication circuits

• Decoupling and noise suppression in power supply circuits

• Timing circuits, including oscillators and frequency generation

• General-purpose use in low-voltage electronics and prototyping

How It Works: The 101 pF 50V Ceramic Disc Capacitor works by storing electrical energy in an electric field and releasing it when needed. It passes AC signals while blocking DC, making it highly effective in coupling, filtering, and decoupling applications. When used in power circuits, it smooths out voltage fluctuations, ensuring more stable and consistent power supply. In timing circuits, it plays a crucial role in controlling charge and discharge rates, helping set precise frequencies or delays. Its ability to filter out noise in both analog and digital circuits makes it a valuable component in a variety of electronic designs.

Product Limitations:

• Voltage Rating: It should not exceed the 50V rating to avoid dielectric breakdown, which could lead to capacitor failure.

• Tolerance: The capacitor has a ±10% to ±20% tolerance, which may result in minor deviations in capacitance for circuits that require precise values.

• Temperature Sensitivity: Like most ceramic capacitors, its capacitance may shift with temperature fluctuations, so it may not be suitable for highly temperature-sensitive applications.
